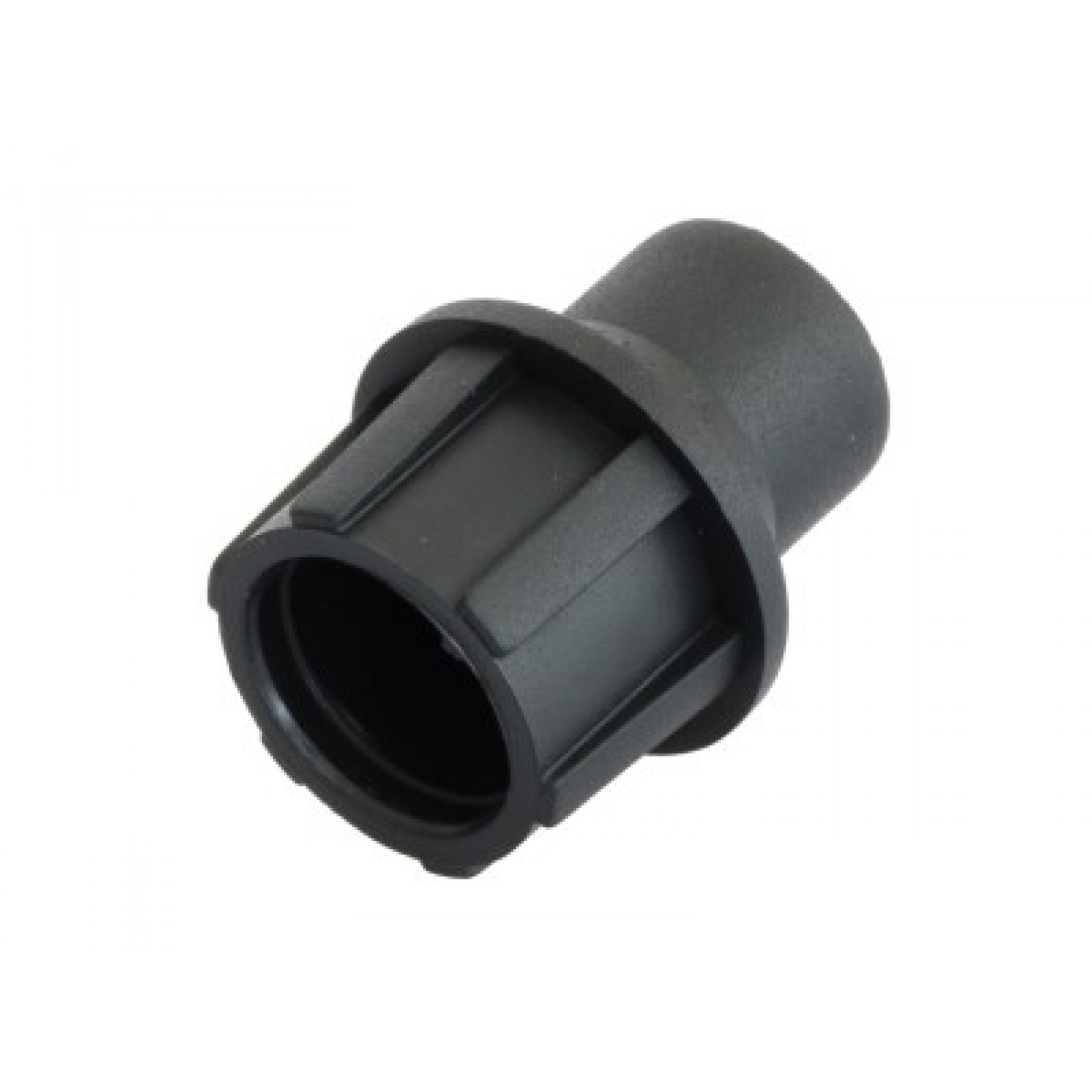

TELECOM "Cut and Push" plastic coaxial connector, patented, Black 5 ΤΕΜ.

Black Pressure-on Connector, for all coaxial cables up to 7 mm diameter. This product is worldwide patented. It is simple and quick, economical, reusable and recyclable, made in Italy, mechanically strong and electronically superior. It is available in 9 different colours.

Τεχνικά χαρακτηριστικά:
Passing band: 0 - 6000 MHz
Passing loss: < 0,022 dB @ 0?3000 MHz
Return loss: > 23,02 dB @ 0?3000 MHz
Impedance: none therefore it can be used with any coaxial system (50, 75, 92, … ohm)
Screening: class A+
In compliance with: EN 50083-4;  CEI 100-7
Service temperature: from -40 up to +120°C
Elongation at break: 650%
Resistance to: UV rays and atmospheric agents
Flame retardant version (UL94 V0): available on request
