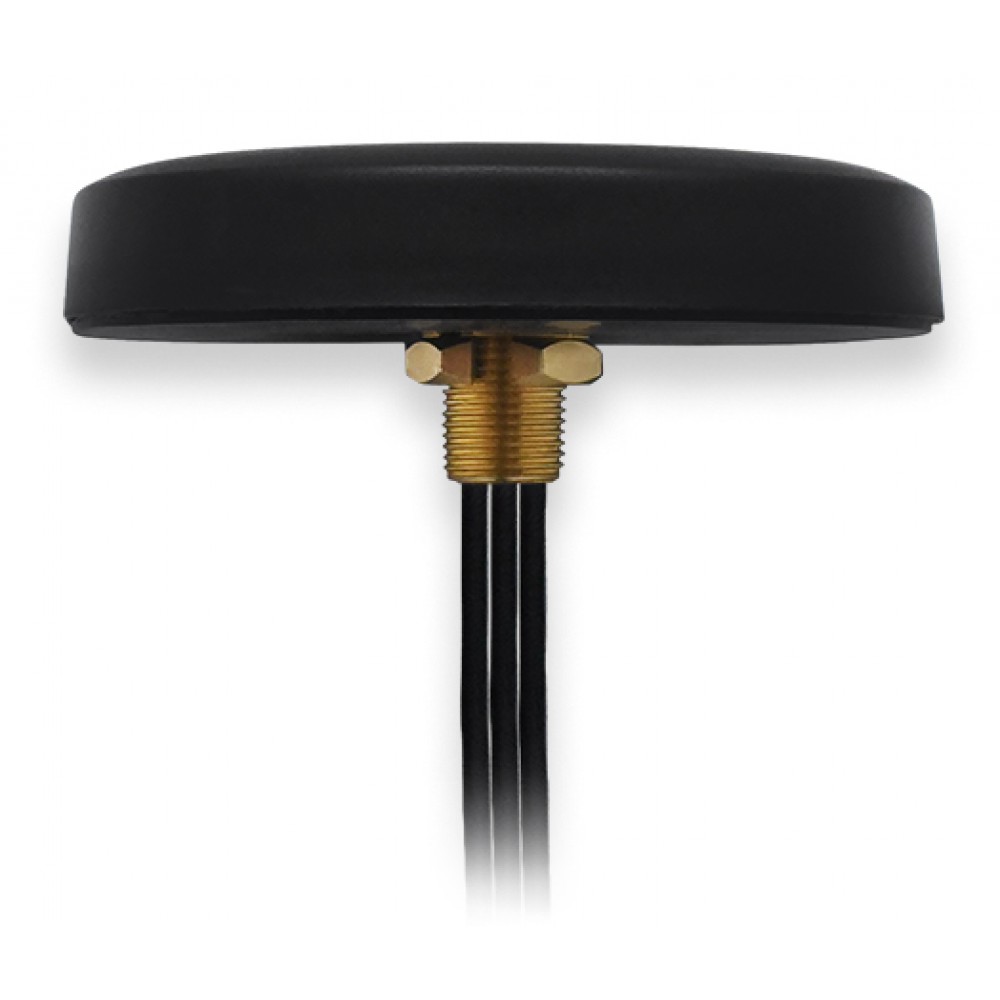

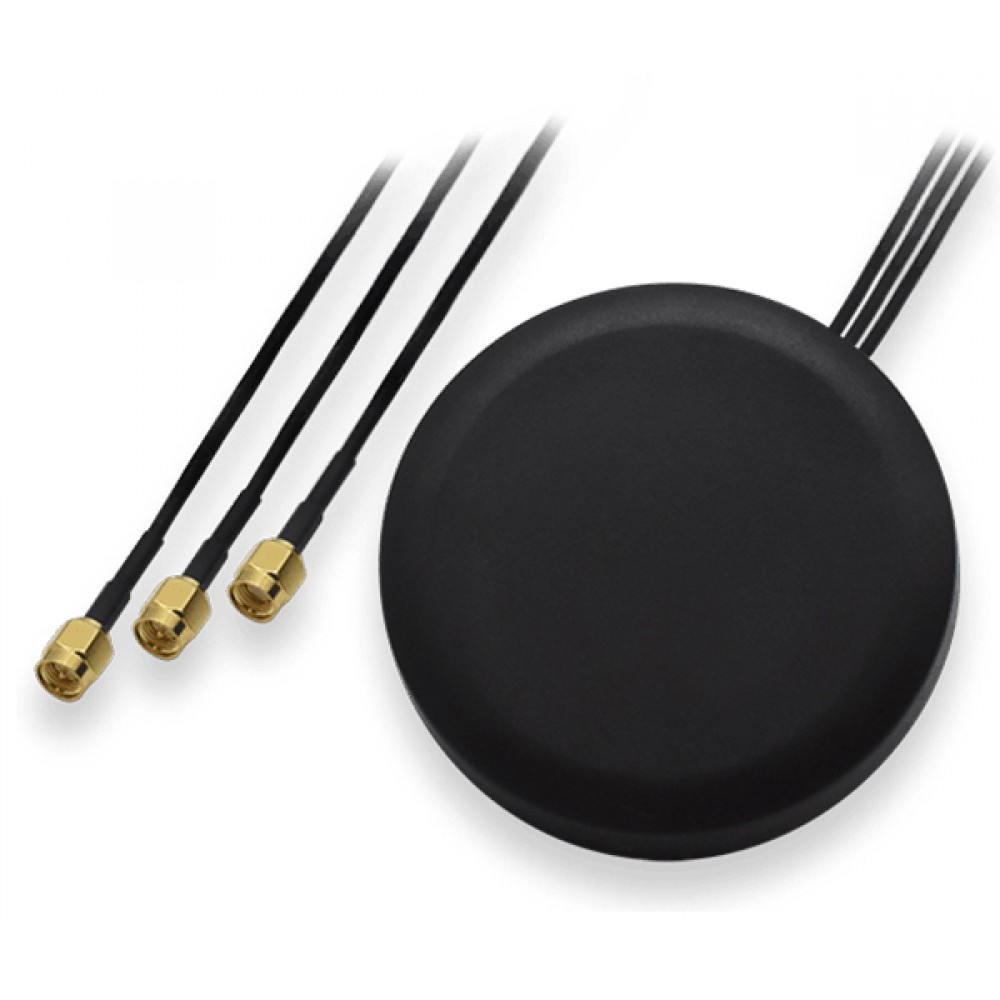

TELTONIKA antenna combo SISO Mobile/GNSS/Wi-Fi  003R-00254, SMA, IP67

Συμβατό με τα router UTX09, RUT230, RUT240, RUT900, RUT950, RUT955, TRB140, TRB142, TRB145.

Τεχνικά χαρακτηριστικά
GNSS Antenna
Frequency Range: 1575.42-1610 MHz
Polarization: RHCP
Impedance: 50 Ω
LNA Gain: 28 dB
LNA Noise Figure: < 1.5 dB
Supply Voltage: 2.7-5 ±0.5 VDC
Current Consumption: < 15 mA
LNA V.S.W.R: <1.65
Connector: SMA Male

LTE Antenna
Frequency Range: 850/900/1800/1900/2170 MHz
Bandwidth: ±90/280 MHz
Polarization: Vertical
Gain: 3.5 dBi
V.S.W.R:: <1.5:1
Impedance:: 50 Ω
Connector:: SMA Male

WiFi Antenna
Frequency Range:: 2350-2500 MHz
Bandwidth: ±100 MHz
Polarization: Vertical
Gain: 2.5 dBi
V.S.W.R:: <1.5:1
Impedance: 50 Ω
Connector: RP SMA Male

Mechanical/Environmental
Mounting Method: Screw
Radome Ingress Protection rating: IP67
Radome Material: ABS
Weight: <250g
Housing Dimensions: O 80x15 mm
Cable: 3x RG174, 3000 mm
